Description

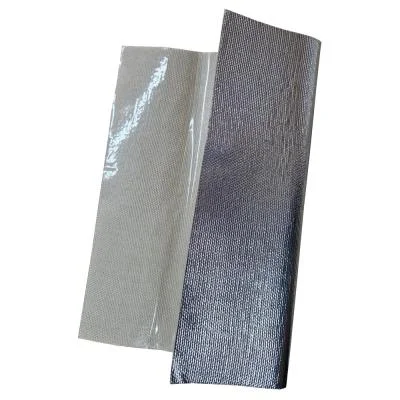

Zircoflex is a revolutionary flexible ceramic heat shield material, offering superb thermal barrier performance at minimal weight and minimal thickness. The material is produced as a thin aluminium backed foil.
Zircoflex heat shield is suitable for temperatures up to 500°C with this single layer reducing radiated temperatures by 64%. Zircoflex can be stacked on top of each other to greatly improve its thermal barrier. There are a few methods to reliably join multiple sheets together which include; high temp-double sided tape (see part ZF-AT), stainless steel ties (see part EX-SS-TIES), contact adhesive, spot welding, crimping or riveting.
Zircoflex makes an ideal heat shield and can be applied to any area of the vehicle where heat protection is needed. For example; air boxes, underside of bonnets, bulkheads, exhaust tunnels and even inlet manifolds or intercooler piping. See product ZF-AT for the attachment tape or the Zircoflex material is available with self adhesive backing for making application much easier.
Zircoflex I heat shield material can also be applied directly to hot surfaces, such as silencer boxes or tailpipes. In this instance, the ceramic side should be placed face down on to the heat source (non-self adhesive sheets only). Securing the heat shield can then be done so by using stainless steel ties – see product EX-SS-TIES.
This Zircoflex Ceramic Heat Shield (non-self adhesive) is supplied in a 297 x 210mm flat sheet (A4 size).
Please click on ‘More Images’ for examples of Zircoflex being used.
