Description

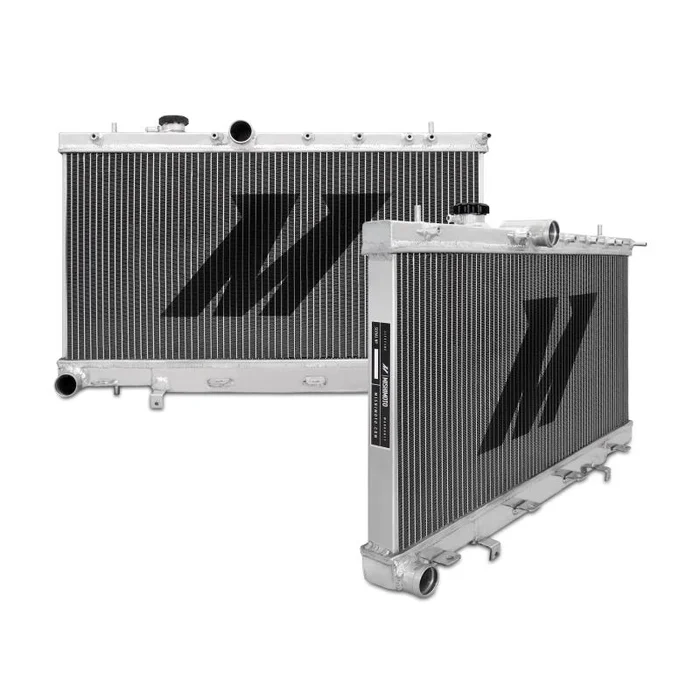

Mishimoto 17.2″ x 28.4″ Single Pass 2-Row Race Aluminium Radiator
Key Features
- Lightweight
- 100% aluminium construction provides increased heat and pressure tolerance, improved heat dissipation, increased durability, and improved cooling efficiency
- Manufactured with robust TIG-welded end tanks for improved strength and durability
Every Mishimoto race aluminium radiator is designed and engineered to maximize cooling efficiency, boost engine functions, and most importantly, protect your car from overheating on and off the track. Lightweight, made from 100% brazed aluminium, and cast end tanks TIG-welded for increased durability, Mishimoto race radiators will enhance the overall performance of your engine. Like every Mishimoto radiator, this aluminium radiator comes with the unparalleled Mishimoto Lifetime Warranty.
More Information
| Overall Length (in) | 17.2 |
|---|---|
| Overall Height (in) | 28.4 |
| Overall Width (in) | 2.15 |
| Core Length (in) | 13.54 |
| Core Height (in) | 27.24 |
| Core Thickness (in) | 1.65 |
| Rows | 2 |
| Inlet (in) | 1.5 |
| Outlet (in) | 1.5 |
| Drain Plug Thread Size | M12 x 1.5 |
| Note | For Subaru vehicles, the provided Mishimoto radiator cap should replace the stock cap located on the expansion tank. The stock cap attached to the radiator should be installed on the Mishimoto Performance Aluminum Radiator. The Mishimoto radiator cap is a two-way valve, while the stock radiator cap is a single valve. Due to the difference in construction, the Mishimoto cap cannot be used on the radiator. If the Mishimoto cap is fit on the radiator, overheating may occur. |
| Coolant Capacity | 2.3 |
