Description

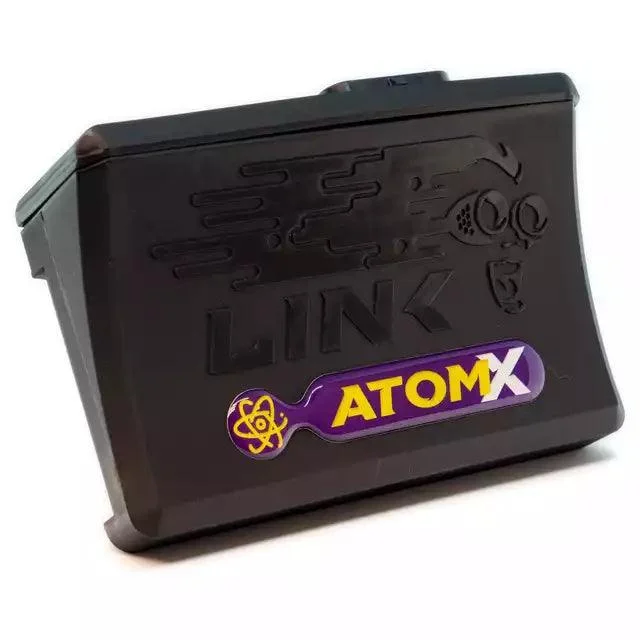

Link G4X Atom Engine Management

4 cylinders with sequential injection and direct spark. Or, it can be used for up to eight cylinders using batch fire. Now featuring Knock Control.

This makes it ideal for naturally aspirated engines that just need a re-tune and don’t need all the extra sensors and features that come with our higher level ECUs.

Requires “A” loom.

The AtomX is ideal for:
1-12 Cylinder Distributed
2-8 Cylinder Wasted Spark
1-4 Cylinder Direct Spark
Odd Fire Engines
2-Stroke Engines
Configurable Firing Order
Configurable TDC Points (for odd fire)

Inputs:
2 x Digital inputs
2 x Temperature inputs
3 x Analog inputs
2 x Trigger inputs
1 x Knock Input

Outputs:
4 x Injector drives
4 x Ignition drivers
4 x Auxiliary outputs^
+5V Sensor power supply

^unused ignition drives can be used as additional Aux
outputs

Communications:
1x CAN bus
1x USB tuning connection
1 x thirty four pin, waterproof connector
Upgraded Communications Chip

Misc:
Comes loaded with all of Link ECU’s standard features.
512MB of logging memory
20 general purpose tables
Runs on PC Link software for G4X

Physical:
Dimensions: 90mmL x 130mmW x 45mmH (without loom)
Weight: 180 grams

What’s in the box?
Supplied with USB tuning cable and mounting bracket.
