DA1748 6-Way Fuse Box Kit With Crimps

Description

DA1748 6-Way Fuse Box Kit With Crimps

SPECIAL ORDER, usually dispatched within 4-5 working days.

6-way blade fuse distribution block neg bus bar

This high quality 6 way fuse holder distribution block has an integral 6 way bus bar – meaning both live and earth connections can all be made at this fuse panel.

> A clear insulating cover is supplied which also has slots to hold spare fuses within the cover.
> Externally on the cover are recesses to mount small format stickers to identify the circuits protected.
> Selection of stickers provided
> Accepts ATO & ATC automotive blade style fuses
> Tin plated bus and fuses connections for superior corrosion resistance
> Mounts via four M4 holes
> Positive and negative posts are M5 size.
> Each circuit is rated at 30 amps at a maximum of 32 volts with a total rating of 100 amps per block.

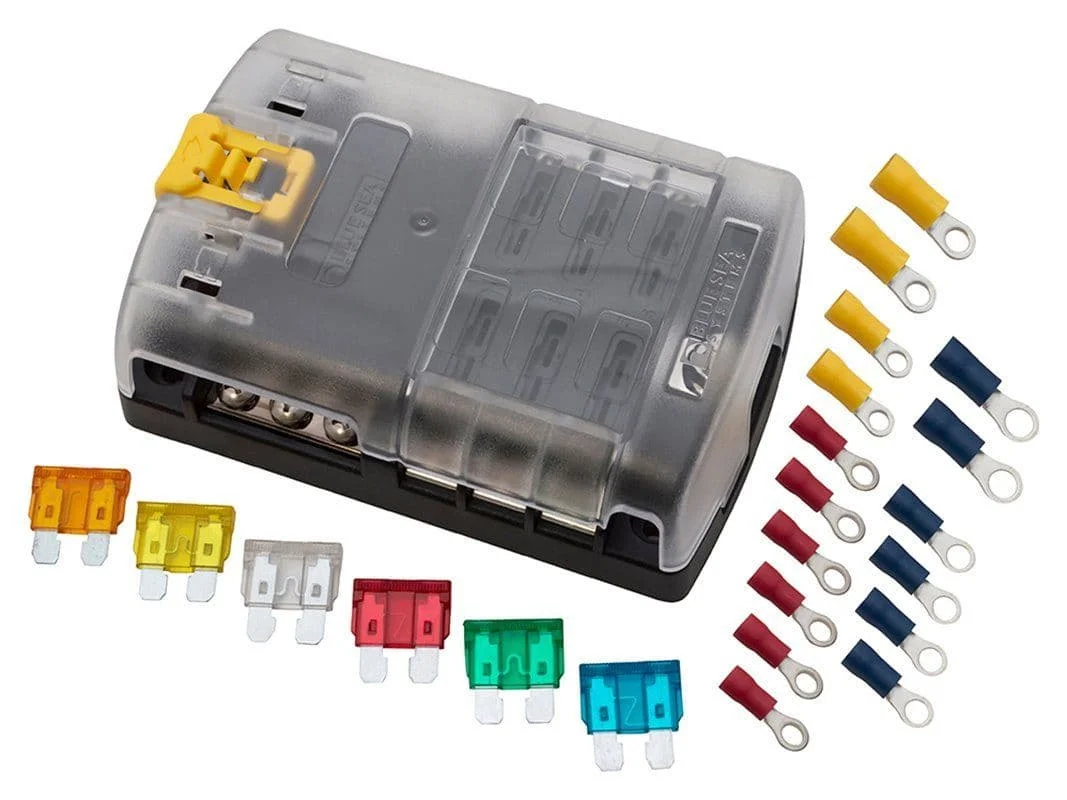

Contents
1 x 6-way blade fuse distribution block with negative bus bar
1 x ATO/ATC 5a blade fuse – beige
1 x ATO/ATC 10a blade fuse – red
1 x ATO/ATC 15a blade fuse – blue
1 x ATO/ATC 20a blade fuse – yellow
1 x ATO/ATC 25a blade fuse – clear
1 x ATO/ATC 30a blade fuse – green
6 x Red pre-insulated M4 rings fuse blocks
4 x Blue pre-insulated M4 rings for fuse blocks
2 x Yellow pre-insulated M4 rings for fuse blocks
2 x Blue pre-insulated M5 rings
2 x Yellow pre-insulated M5 rings
